Explosion-proof ground suite

Inspection robots for explosive zones

Quadruped, tracked and overhead rail robots, built on Ex-rated platforms, take over the inspection loops that put people in explosive gas environments: petrochemical plants, refineries and power grids.

Book a live demo See the lineup

Explosion-proof quadruped inspection robot with an intrinsically safe PTZ camera, 3D LiDAR, depth camera and gas sensor

An explosion-proof quadruped and a tracked inspection robot side by side on an industrial site

Robot-first rounds

No one in the hazard zone

Routine rounds through explosive atmospheres run robot-first, with crews supervising from the Joint Inspection Center instead of standing in the blast zone.

Ex-proof sensing payload. Ex-proof PTZ cameras and gas sensors stream data through real-time edge computing on the robot itself.
Goes where the plant goes. Stair-scaling quadrupeds and pipeline-traversing platforms keep continuous plant mapping running across levels.
Overhead when the floor is busy. Rail robots patrol transformer banks and switchyards on a fixed track: out of the way, out of danger and never off shift.

Ex-rated platforms
L4-S Class wheeled
Real-time edge computing

What the suite watches

Faults found before they become outages

Every pass collects the same readings a technician would, at the same points, on every shift.

Infrared thermal imaging
Heat signatures across transformer banks and switchgear are captured on every pass.
ppm gas-leak telemetry
Trace-level leak detection reports concentrations in parts per million, continuously.
Edge-AI alarms
Anomalies are flagged at the edge and escalated before faults become outages.

Overhead track-hanging inspection robot patrolling pipework inside an industrial plant

The lineup

Every platform, one inspection loop

Tracks for rough ground, legs for stairs and grating, and a rail for routes that never change. Each one reports into the same dashboard.

Ask about a configuration

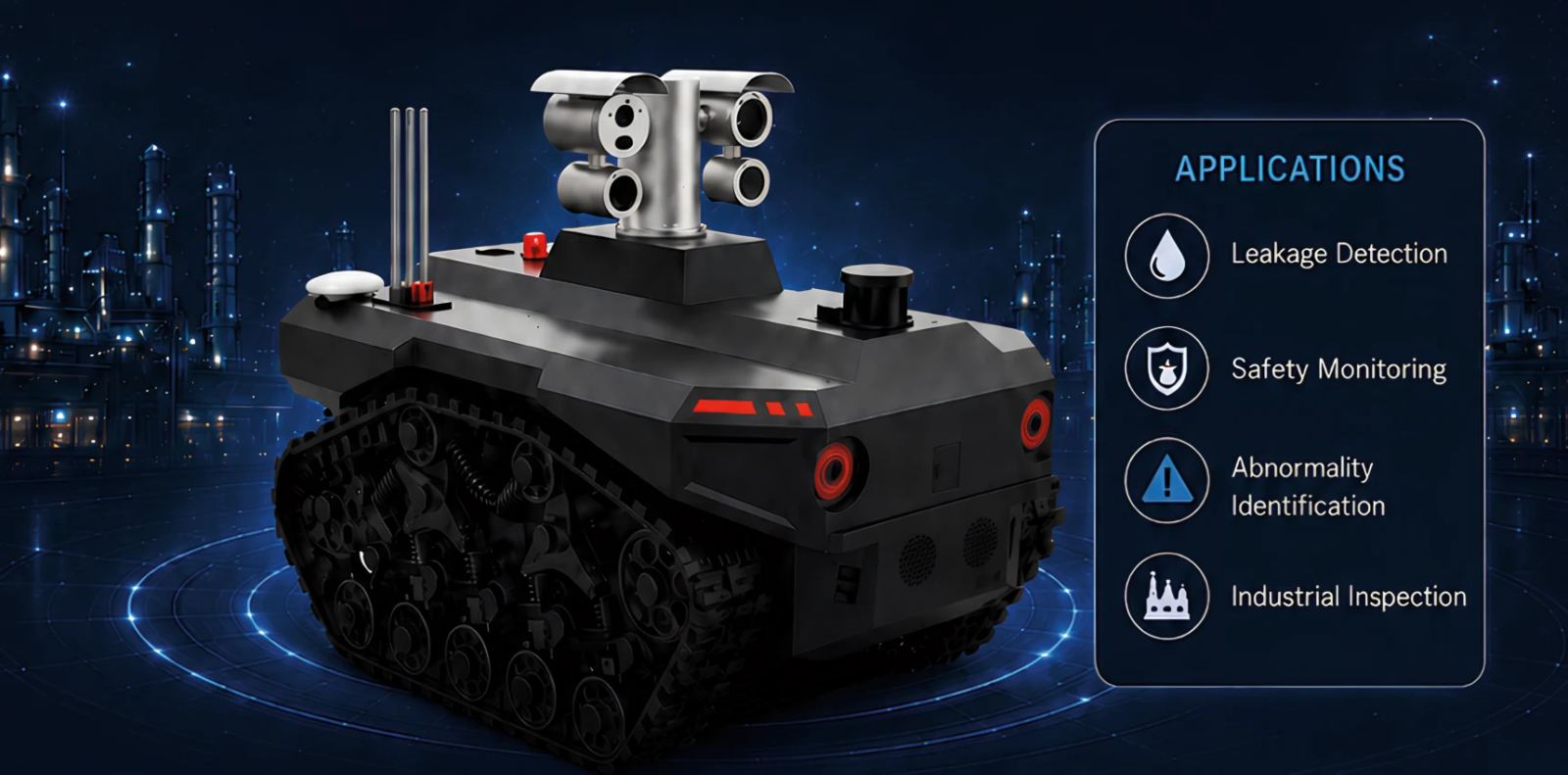

Explosion-proof tracked ground inspection robot with a dual-sensor turret

Tracked crawler

Tracked inspection crawler

A tracked chassis holds its footing on gravel, grating and stairwell landings, carrying a raised sensor turret that keeps line-of-sight over pipework and tanks while the tracks do the climbing.

Rated IP66
SLAM laser navigation
Wi-Fi / 4G / 5G

Endurance: ≥ 5 hours (at 0.5 m/s)
Maximum speed: 1.4 m/s
Cruise speed: 0.5 m/s
Dimensions: < 1250 × 960 × 920 mm
Empty weight: < 450 kg
Protection rating: IP66
Operating temperature: −20 °C to +60 °C
Climbing ability: > 25°
Video & sensors: HD visual, IR camera, LiDAR

Quadruped

Explosion-proof quadruped

Four legs clear obstacles a wheeled platform cannot: stepping over piping, up stairwells and across grating decks while carrying a full gas, thermal and vision payload rated for hazardous zones.

Rated Ex IIB T4 Gb
Payload 20–100 kg
Rated IP66

Weight incl. battery: 110 kg
Walking speed: 0–1.0 m/s
Navigation: LiDAR + depth camera + IMU fusion
Position accuracy: ≤ ±5 cm
Battery: 52 Ah (> 80% in 2 hrs)
Operating temperature: −20 °C to +50 °C
Climbing angle: ≤ 20°
Obstacle crossing: 200 mm
Payload support: 20 kg / 100 kg configuration

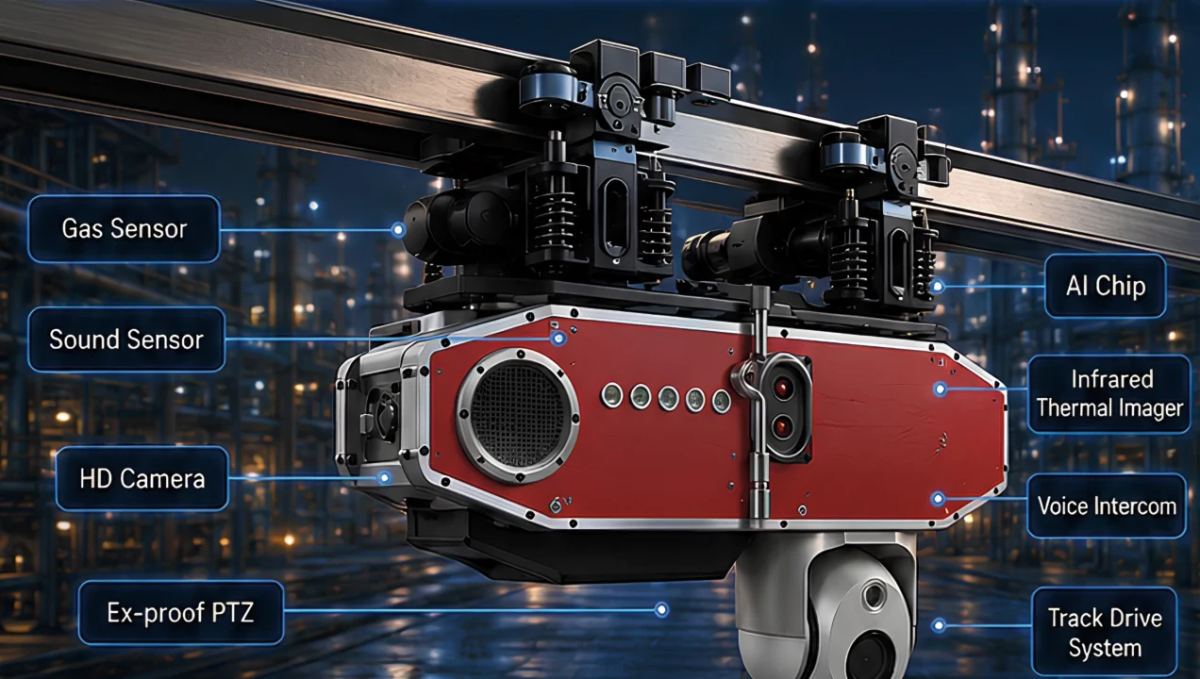

Overhead track-hanging inspection robot with infrared and gas sensors

Overhead rail

Track-hanging patrol robot

Mounted on a fixed overhead rail through transformer banks, tank farms and pipeline corridors, it never leaves its route and never misses a shift, reading gauges, valves and heat signatures on every pass.

Rated IP66
Odometer + Hall + RFID navigation
Wi-Fi / 4G / 5G

Weight incl. battery: ≤ 50 kg
Straight-line speed: 0–2 m/s
Position accuracy: ≤ ±10 mm
Working temperature: −20 °C to +80 °C
Climbing angle: ≤ 60°
Turning diameter: 800 mm
Charging time: ≤ 3 hrs
Battery life: 10 km / 15 Ah
Obstacle safety: Front/rear avoidance + e-stop

Published specifications for a typical configuration. Final figures depend on the configuration and site; we confirm them during scoping.

Joint Inspection Center

Supervised from one dashboard.

Thermal overlays, gas readings and edge-AI alarms from every explosion-proof unit surface on the Joint Inspection Center dashboard and by SMS, so a person makes the call.

See the digital twin

Digital twin synthesisA real-time 3D view of the plant, not just a camera feed.
Mission orchestrationRehearse in the twin, then dispatch the real fleet.
Smart Edge AlarmsFaults, corrosion and gas escalated to a person.
