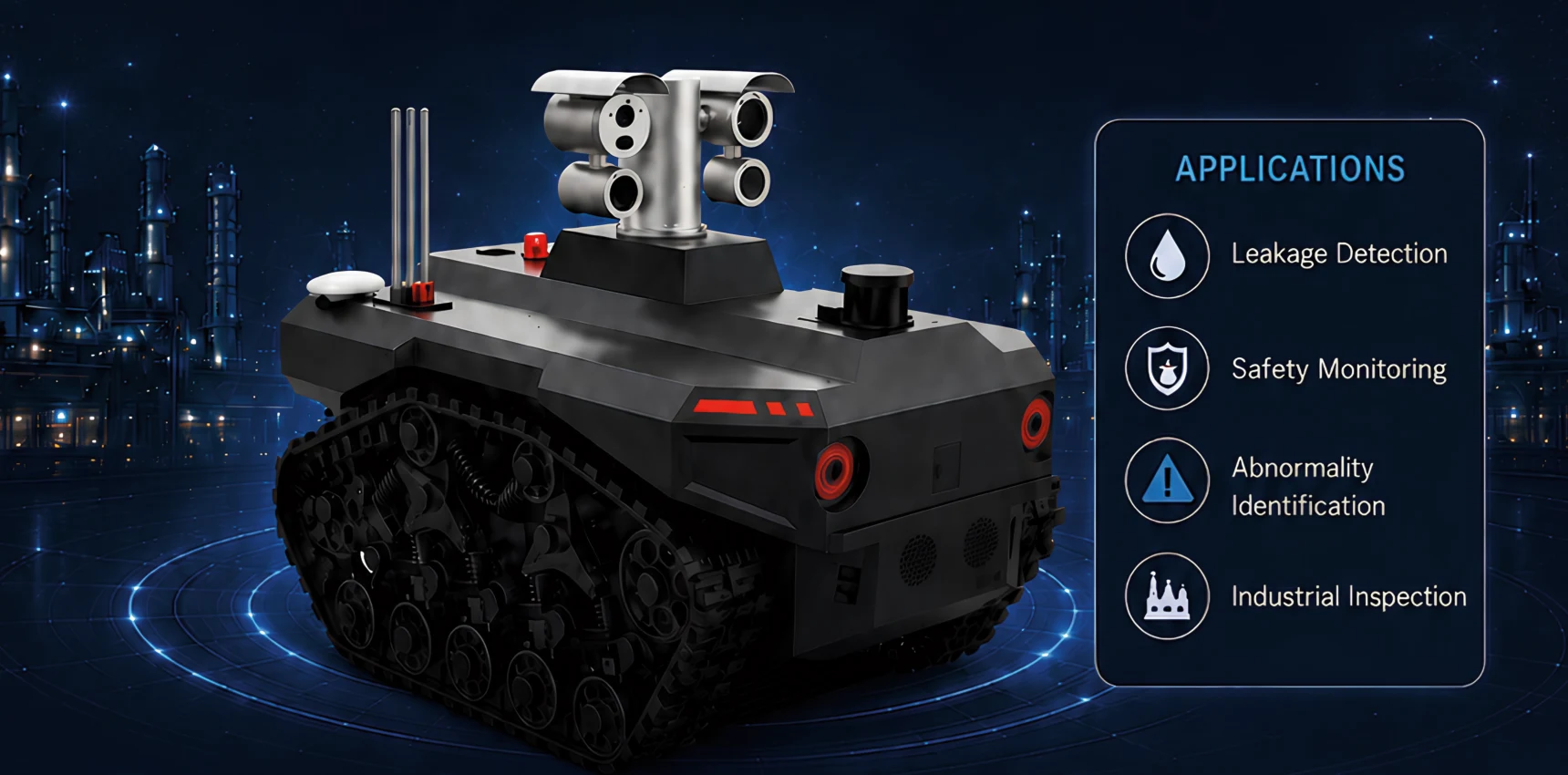

Explosion-proof ground suite
Tracked crawler for uneven, hazardous ground
A tracked chassis holds its footing on gravel, grating and stairwell landings alike, carrying a raised sensor turret that keeps line-of-sight over pipework and tanks while the tracks do the climbing.
- Endurance
- ≥ 5 hours (at 0.5 m/s)
- Maximum speed
- 1.4 m/s
- Cruise speed
- 0.5 m/s
- Dimensions
- <1250 × 960 × 920 mm
- Empty weight
- <450 kg
- Protection rating
- IP66
- Operating temperature
- -20°C to +60°C
- Climbing ability
- > 25°
- Video & sensors
- HD visual, IR camera, LiDAR

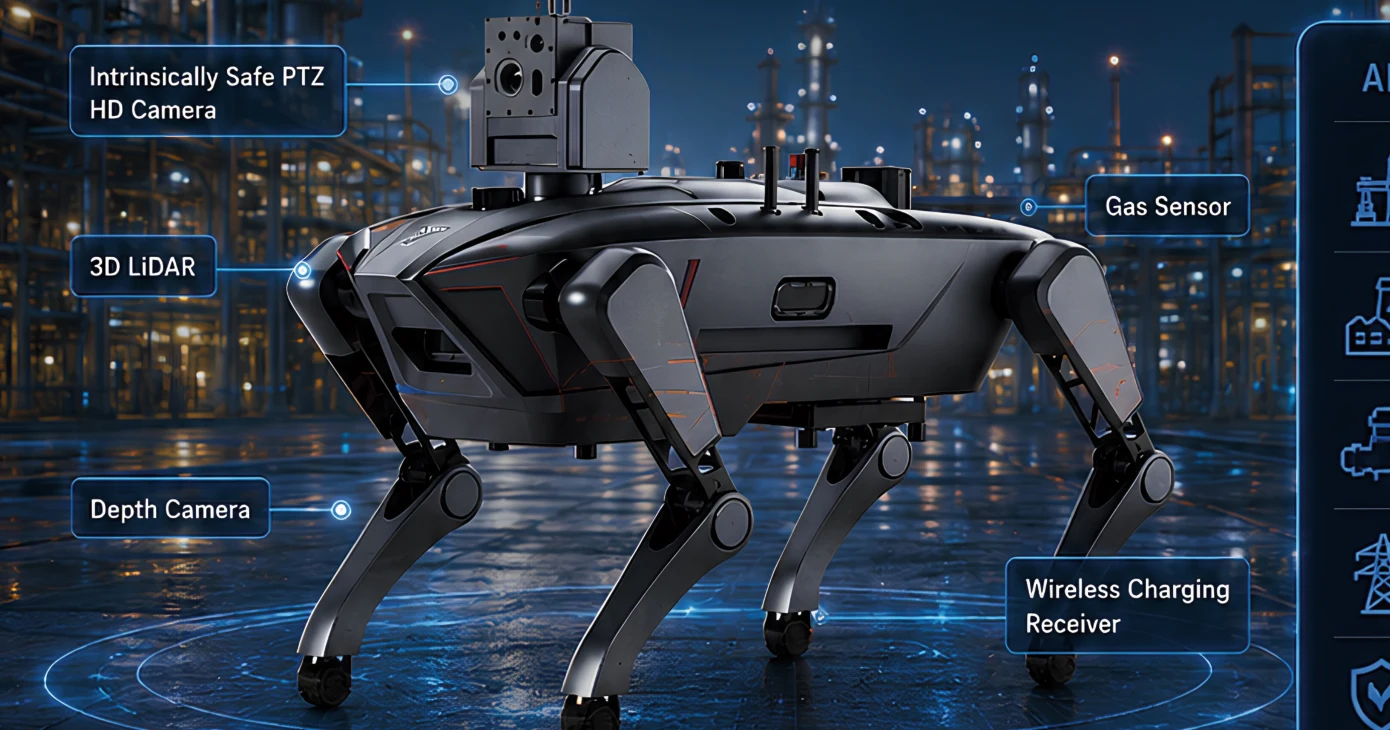

Explosion-proof ground suite
Quadruped for stairs, grating and tight plant floors
Four legs clear obstacles a wheeled platform can't — stepping over piping, up stairwells and across grating decks — while carrying a full gas, thermal and vision payload rated for hazardous zones.
- Weight incl. battery
- 110 kg
- Walking speed
- 0–1.0 m/s
- Navigation
- LiDAR + depth camera + IMU fusion
- Position accuracy
- ≤ ±5 cm
- Battery
- 52 Ah (>80% in 2 hrs)
- Operating temperature
- -20°C to +50°C
- Climbing angle
- ≤ 20°
- Obstacle crossing
- 200 mm
- Payload support
- 20 kg / 100 kg configuration

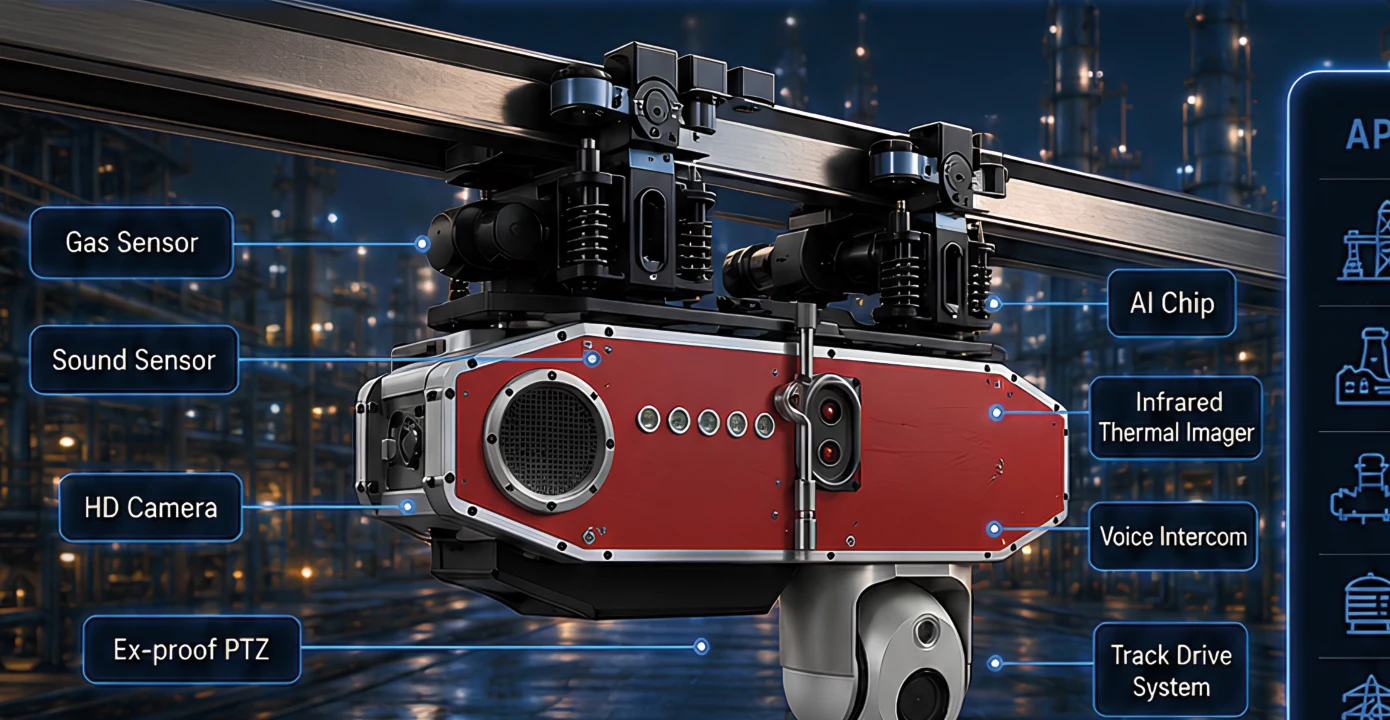

Overhead surveillance
Track-hanging robot for continuous rail patrol
Mounted on a fixed overhead rail through transformer banks, tank farms and pipeline corridors, this unit never leaves its route and never misses a shift — reading gauges, valves and heat signatures on every pass.
- Weight incl. battery
- ≤ 50 kg
- Straight-line speed
- 0–2 m/s
- Position accuracy
- ≤ ±10 mm
- Working temperature
- -20°C to +80°C
- Climbing angle
- ≤ 60°
- Turning diameter
- 800 mm
- Charging time
- ≤ 3 hrs
- Battery life
- 10 km / 15 Ah
- Obstacle safety
- Front/rear avoidance + e-stop
Put the explosion-proof suite on your site
Walk us through your hazardous-zone inspection loops and we'll show you which ones a robot should be doing by next quarter.
